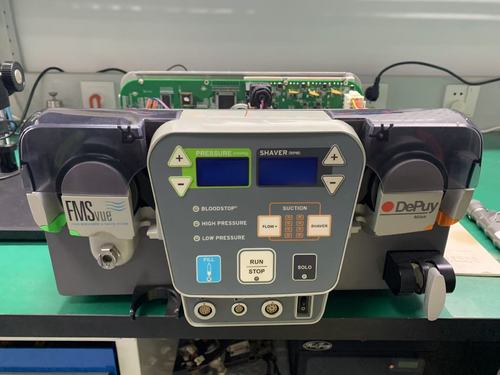

Repairing a DePuy Mitek FMS VUE (often referred to by its older name, Tornado micro shaver) is a complex task that should only be performed by certified and trained professionals. This is not a user-serviceable device.
However, I can provide a detailed overview of the common issues, the general repair process, and the critical safety considerations. This information is intended for biomedical technicians, surgical repair specialists, or to help you understand what a professional repair service will do.
⚠️ Critical Safety Warning ⚠️
Electrosurgical Device: The FMS VUE is a combination mechanical shaver and electrosurgical tool. Incorrect repair can lead to:
Patient and User Burn Injury: Faulty insulation can cause stray energy transfer, leading to severe burns at unintended surgical sites.
Performance Failure: A poorly repaired handpiece can malfunction during surgery, delaying the procedure and potentially causing tissue damage.
Sterility: The device must be able to withstand repeated sterilization cycles without failure. A non-compliant repair can compromise sterility.
Void Warranty & Regulatory Compliance: Unauthorized repair voids the manufacturer's warranty and may put the device outside of compliance with regulatory bodies like the FDA (USA), MHRA (UK), or other national health authorities.
Common Failure Points for the FMS VUE / Tornado Shaver
Blade and Burr Damage: The most common issue. Cutting edges become dull, teeth break, or the inner blade seizes.
Insulation Failure: Cracks, cuts, or wear in the blue insulating sleeve around the shaft. This is a critical safety hazard.
Drive Cable Failure: The flexible drive cable inside the hose can fray, kink, or break, leading to loss of power or inconsistent speed.
Handpiece Seals Failure: Worn-out seals allow irrigation fluid and biological debris to ingress into the motor assembly, causing corrosion and electrical failure.
Motor Burnout: The DC motor can fail due to age, overloading (stalling the blade), or fluid ingress.
Connector Damage: Bent pins or cracked housings on the proximal end that connects to the control unit (console).
Hose Damage: Cuts, abrasions, or cracks in the outer hose, potentially damaging the internal wires and drive cable.
General Professional Repair Process
A certified repair technician will follow a process like this:
1. Intake and Initial Inspection
Log the device, noting the reported issue and serial number (28*** in your query is part of the serial).
Perform a visual inspection for obvious damage: cracked housing, damaged insulation, bent connector pins.
2. Performance Testing
Connect the handpiece to a dedicated shaver tester console (e.g., a DePuy Synthes tester).
Run tests for:
Free-Run Speed and Current Draw: Does the motor spin up to the correct RPM? Does it draw excessive current (indicating a bound-up mechanism or failing motor)?
Oscillation: For blades that oscillate (like the Tornado), does the pattern function correctly?
Brake Function: Does the blade stop immediately when the trigger is released?
Insulation Integrity Test (Hi-Pot Test): This is the most critical safety test. A high voltage is applied to the shaft to ensure there are no leaks in the insulation. Failure here means the device is unsafe for use.
Irrigation and Suction: Check for leaks and proper flow through the channels.
3. Disassembly and Detailed Inspection
Disassemble the handpiece according to manufacturer guidelines using specialized tools.
Inspect all internal components:
Blade/Burr: Check for wear, chipping, and sharpness. Usually replaced as a consumable.
Insulation Sleeve: Inspect for any micro-cracks or breaches. Replaced every time as a best practice.
Seals and O-rings: All are replaced during a refurbishment.
Drive Coupling: Check for wear or stripping.
Motor: Check for corrosion, carbon brush wear (if applicable), and bearing smoothness.
Hose and Cables: Inspect for internal damage.
4. Cleaning and Reassembly
Ultrasonic cleaning of all metal components.
Replacement of all wear-and-tear parts: seals, O-rings, insulation sleeve, blade assembly.
Reassembly with proper lubrication on bearings and gears.
Precise calibration of the drive mechanism.
5. Final Testing and Certification
Repeat all performance and safety tests (Hi-Pot test is mandatory).
Upon passing, the device is labeled as refurbished/tested, with a new test date and serialized tracking for the repair.
It is then packaged for return.
What You Should Do
Do Not Attempt to Repair It Yourself. The risks are far too high.
Contact Official Repair Channels:
DePuy Synthes (Johnson & Johnson) Directly: They offer official repair and refurbishment services. This is the safest option and ensures full compliance.
Certified Third-Party Repair Companies: There are reputable companies specializing in medical device repair. Ensure they are ISO 13485 certified and have specific certification for DePuy Mitek shavers. They will use OEM-quality parts and follow the strict testing protocols.
When contacting a repair service, have this information ready:
The full device name: DePuy Mitek FMS VUE Handpiece
The serial number (the 28*** number)
A description of the problem (e.g., "won't spin," "smells burnt," "error code on console," "insulation is cracked").
By using a certified repair service, you ensure patient safety, surgeon confidence, and the longevity of your valuable surgical equipment.
